Modular conveyors

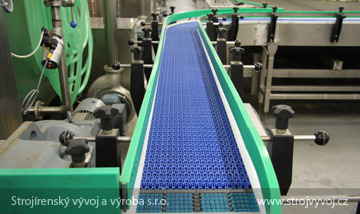

Modular conveyors are designed for transportation in horizontal or inclined directions, in food processing plants. Thanks to a wide range of belts, the conveyors are ideal for the transportation of both containers and materials. They can be used separately or incorporated into production lines. The stainless steel structure combined with plastic components is designed to enable easy cleaning.

The conveyor is driven by a worm gear with an electric motor located on the drive shaft. Bevel gears are used for larger devices. Modular conveyors are fitted with belts, with the spacing between 1/2” and 2”, made of PP, PE, POM or PA. In order to reduce the friction coefficient, the belts in the upper and lower runs are supported by plastic slide guides. The bases below the conveyors have adjustable feet or castors.

The device is made of stainless steel structure (quality according to DIN 1.4301), including the connecting material of quality A2 and plastic components. All materials used have been certified for direct contact with food.

Types of modular conveyors

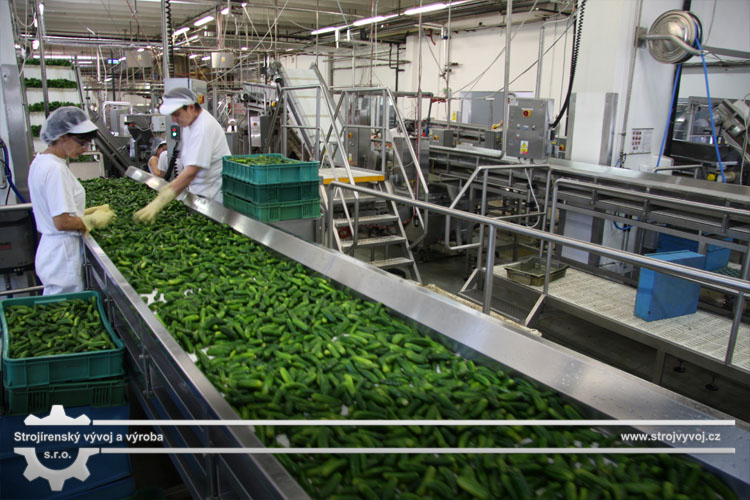

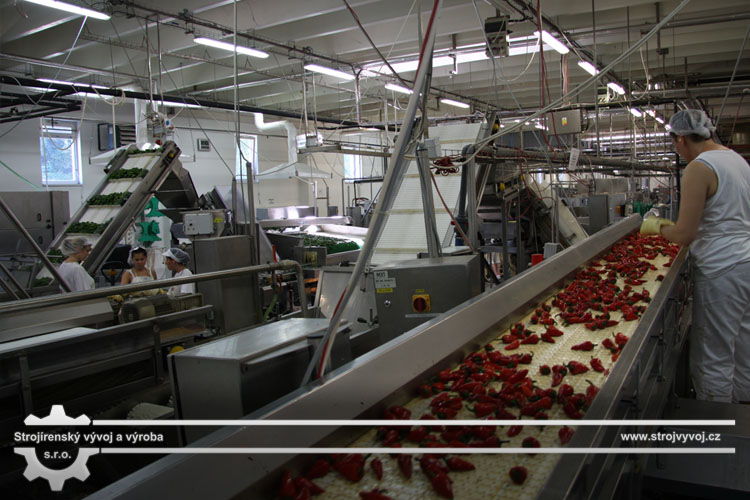

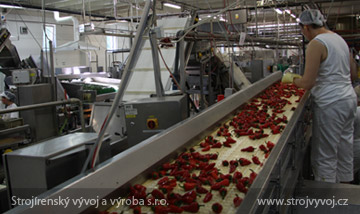

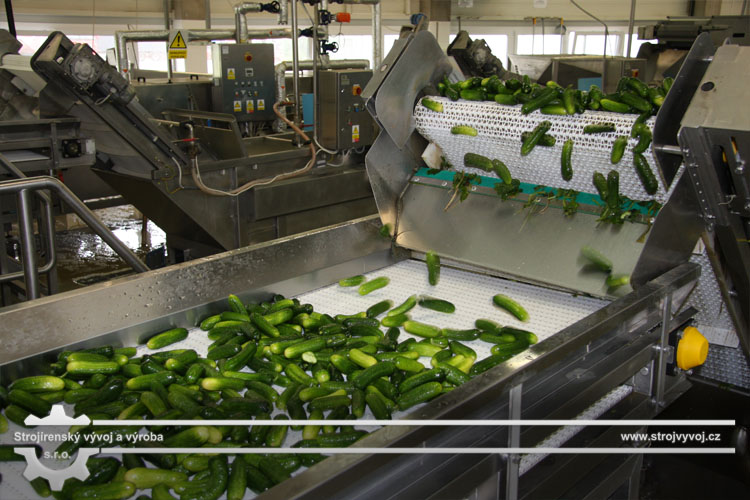

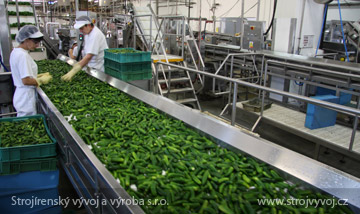

  • Horizontal conveyors
  • Inclined conveyors with a smooth belt

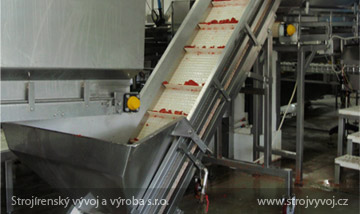

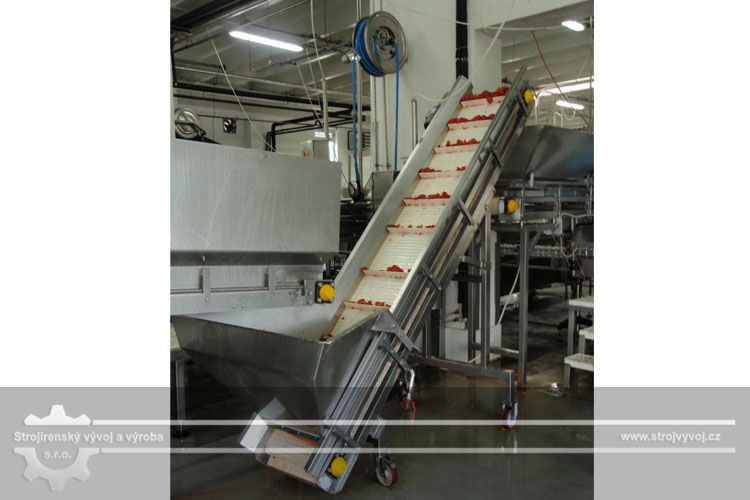

  • Inclined conveyors with carriers
  • Angular conveyors

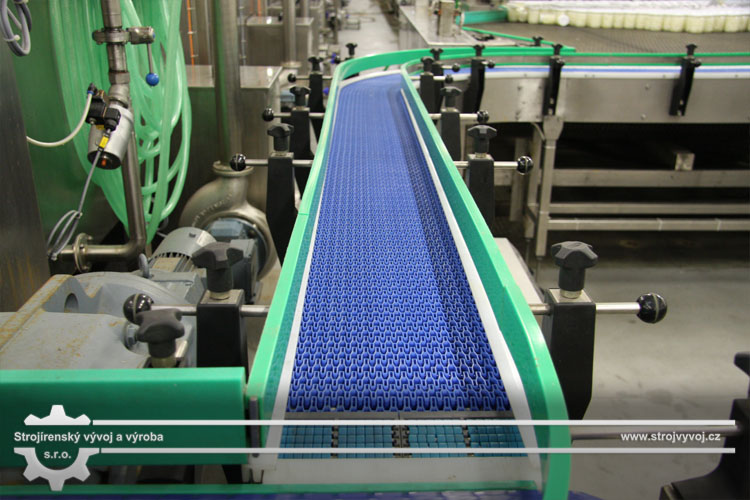

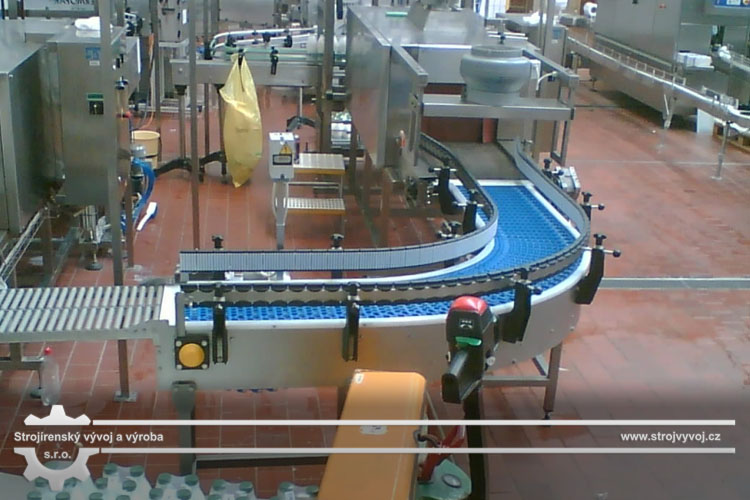

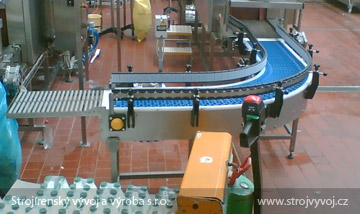

  • Conveyors with a bend
  • Reversible conveyors
  • Accumulating tables

Technical parameters for inquiries

  • Conveyor length
  • Conveyor belt width
  • Carrying capacity
  • Angle
  • Temperature load on belt
  • Type of material transported
