Roller conveyors

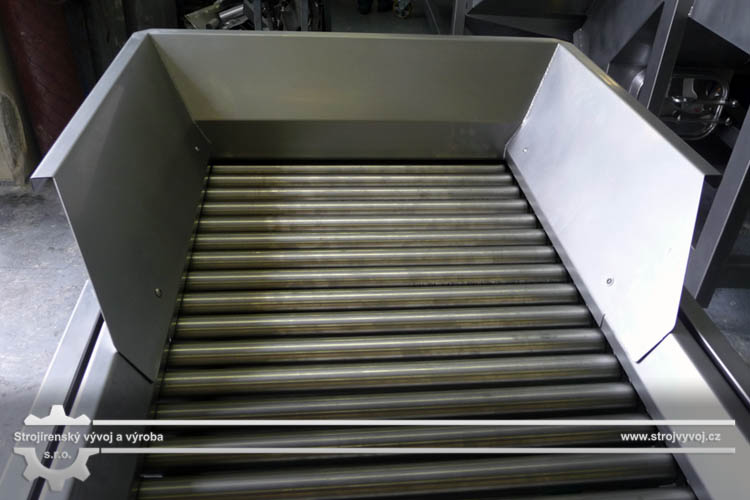

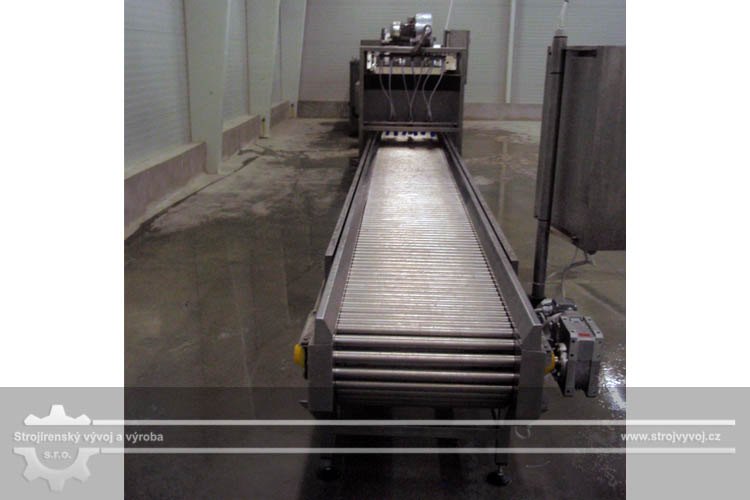

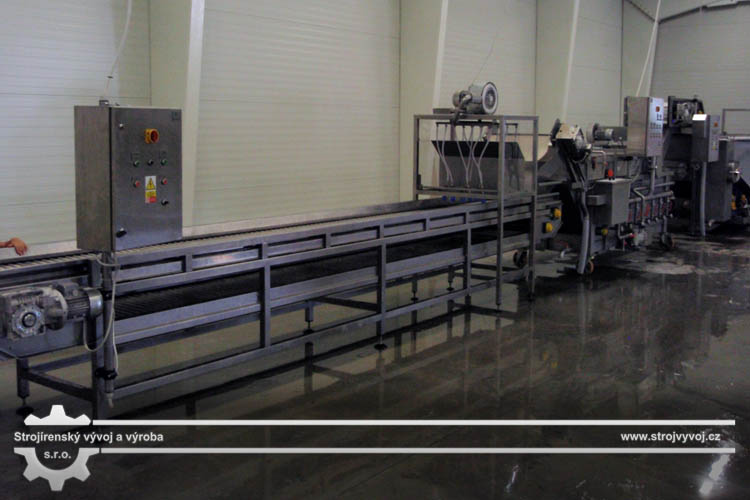

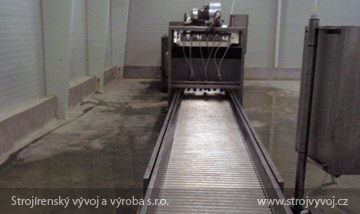

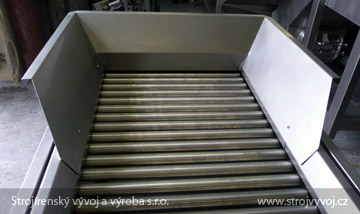

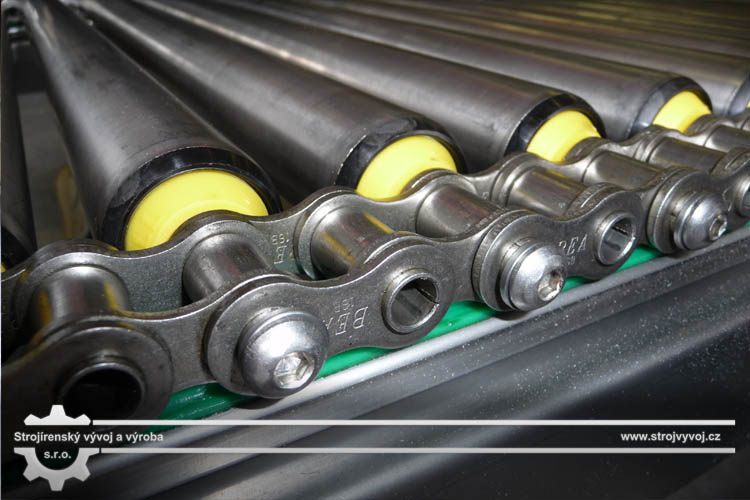

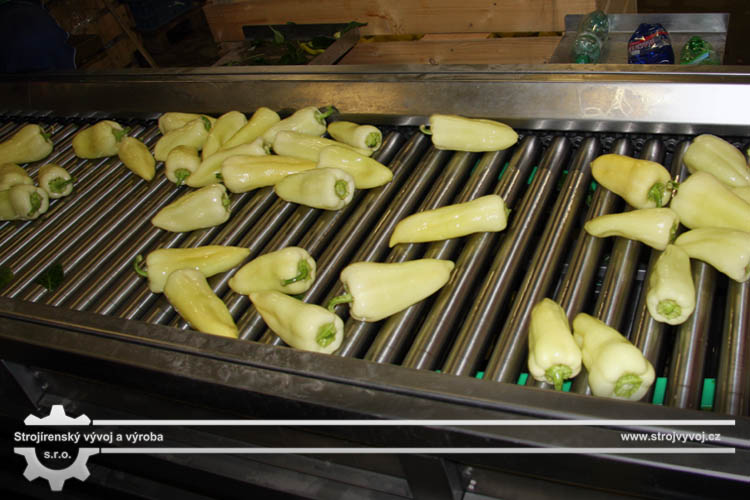

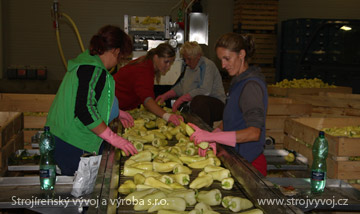

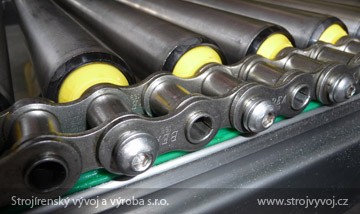

The roller track is designed for the final manual sorting of vegetables. The transport element consists of rolls 40 mm in diameter, rolling along plastic rails. In addition to transporting the material, they cause it to rotate, thus allowing for visual inspection of the surface. There are 8 working sites situated along the sides of the conveyor, with desks designed for plastic containers in which the rejected material is discarded. The roller track consists of a supporting frame, pulling chains with rollers and a drive. Pulling chains are made up of stainless steel roller chains with hollow pins. The track is driven by a worm gear with an electric motor located on the drive shaft with chain gears. The frame is set up on adjustable articulated feet.

The device is made of stainless steel structure (quality according to DIN 1.4301), including the connecting material of quality A2 and plastic components. All materials used have been certified for direct contact with food.

Type / technical parameters: VD600 2011

Total length

6410 mm

Total width

2026 mm

Nominal width

790 mm

Total height

990 mm

Distance between shaft axes

6000-6060 mm

Height of the working area

900 mm

Total weight

960 kg
