Pepper coring machine

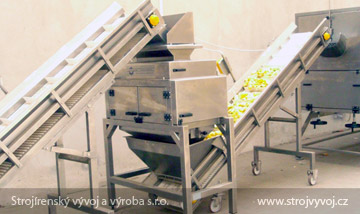

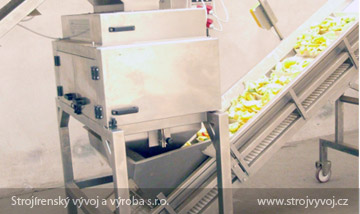

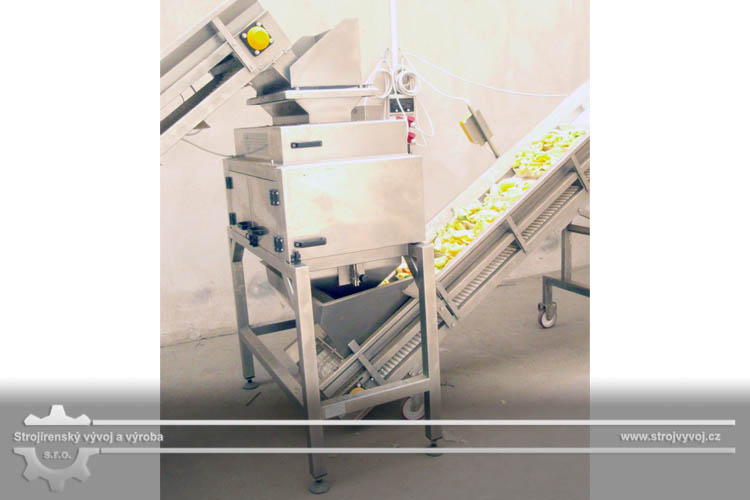

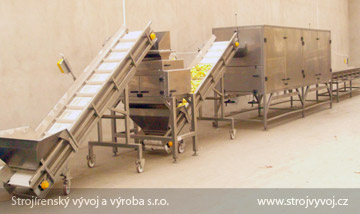

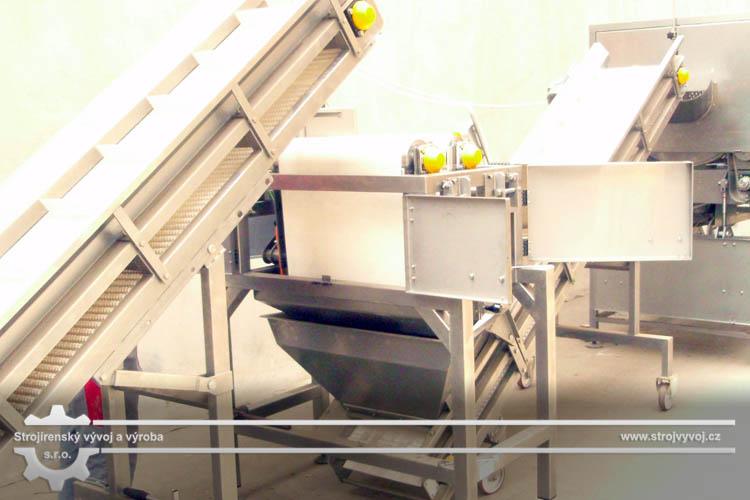

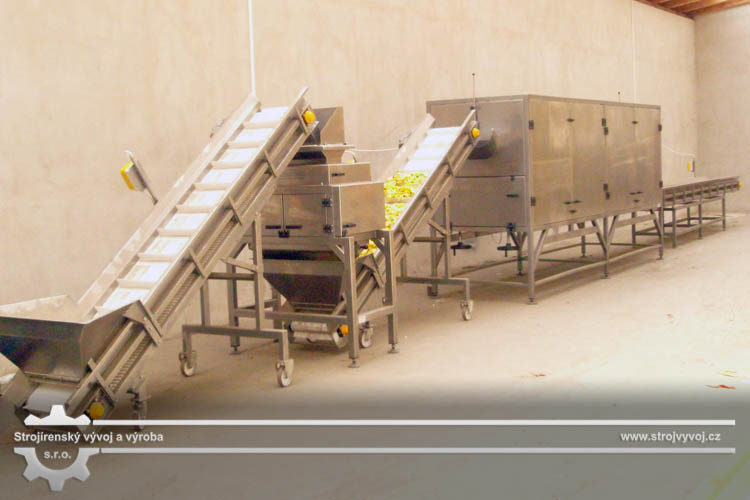

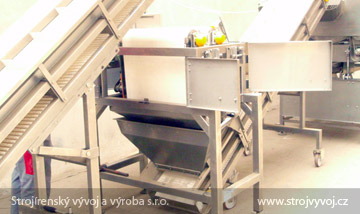

The pepper coring machine is designed for the halving and coring of peppers. The machine is included in the pepper processing line. Peppers are delivered to the coring machine hopper by an input modular conveyor. Two counter-rotating conveyors press the material which is subsequently cut into halves against a knife. Halved peppers fall into the hopper of the discharging modular conveyor which transports them into the drum washer for rinsing and removal of seeds. When pressed, most seed cores are separated from the material.

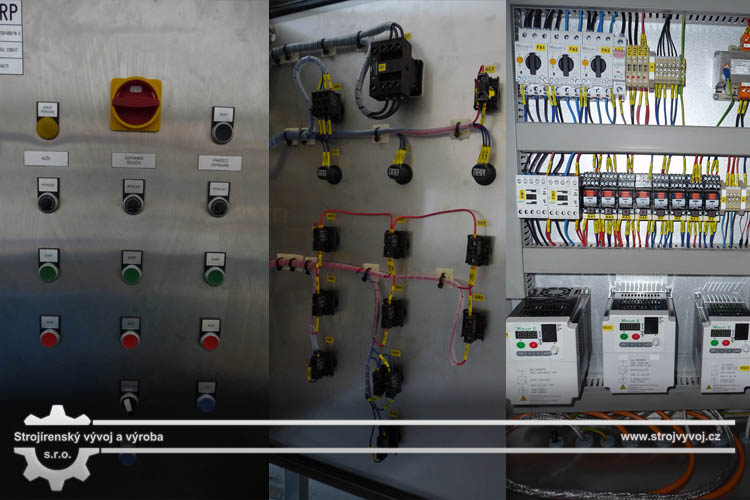

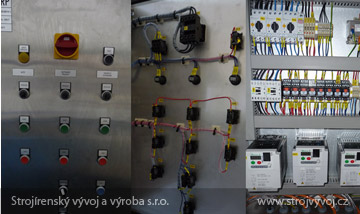

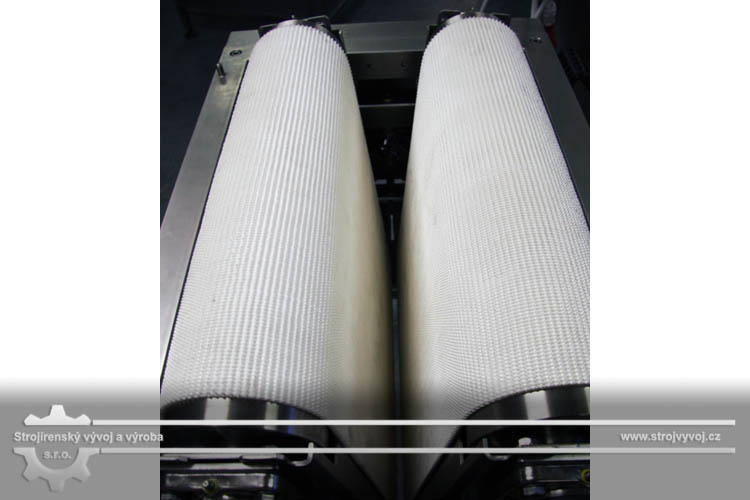

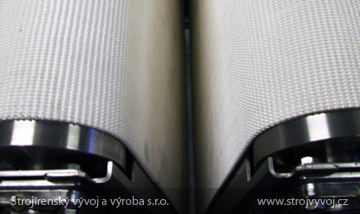

The machine is driven by a pair of drum motors located at the bottom of the counter-rotating belt conveyors. The conveyors are fitted with a transport belts. The drives in both conveyors are controlled by a single frequency changer to ensure the same transport speed in both counter-rotating belts.

The device is made of stainless steel structure (quality according to DIN 1.4301), including the connecting material of quality A2 and plastic components. All materials used have been certified for direct contact with food.

Type / technical parameters: OP 600 - 1555

Total length

650 mm

Total width

1260 mm

Total height

2000 mm

Total weight

405 kg
